Disc wood shaving machine introduction:

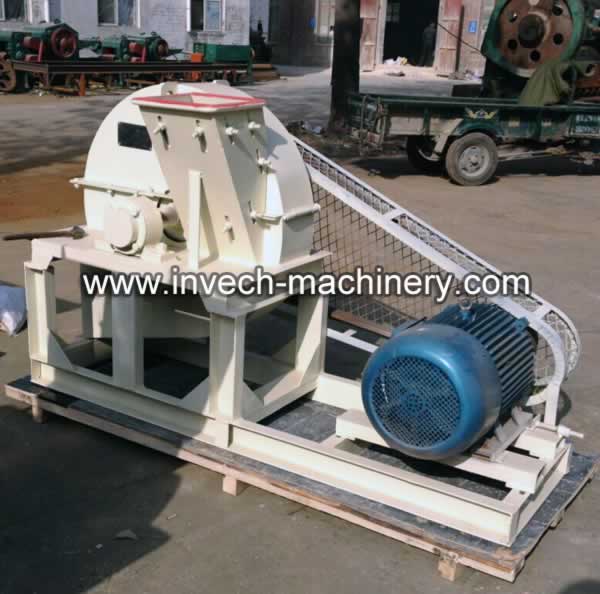

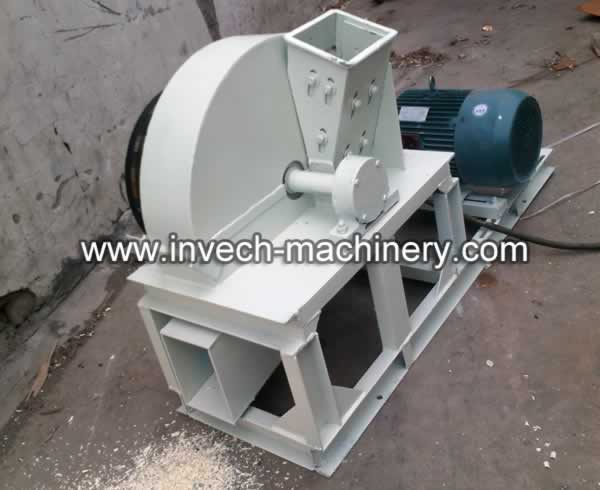

Disc wood shaving machine also called Wood Paring Machine, or Wood Flaker (Machine), which can making the wood log into wood shaving. The wood shaving can be used to the animal bedding .The machine includes rack, the platform on the rack, knife rest, cutters, diesel engine etc.
Disc wood shaving machine parameters:
MODEL | YDSM-600 | YDSM-800 | YDSM-900 | YDSM-1000 | YDSM-1200 |
Blade diameter(mm) | 550 | 750 | 850 | 1000 | 1200 |
Blade quantity | 8 | 8 | 8 | 8 | 8 |
Feeding size | 180*200 | 200*200 | 200*250 | 300*400 | 400*500 |
Main shaft speed(rpm) | 740 | 740 | 740 | 740 | 740 |
Power(kw) | 15 | 30 | 37 | 55 | 75 |
Capacity(kg/h) | 500 | 1000 | 1500 | 3000 | 4000 |
