Wood Timber Multi Rip Saw for Pallets Planks

Author:2323/3/29 15:42:16    Time:2323/3/29 15:42:16    Popularity:0

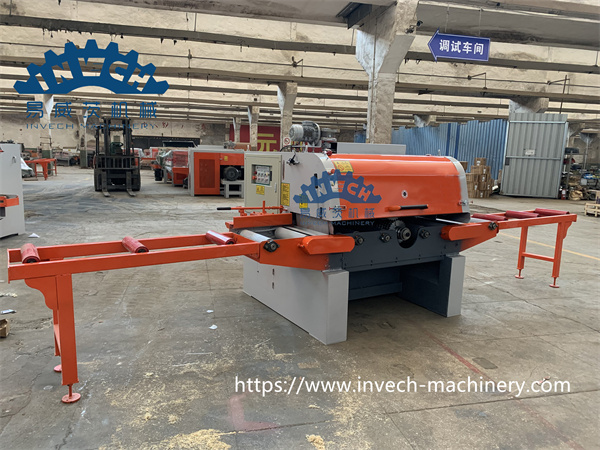

Wood Timber Multi Rip Saw for Pallets Planks


Brief Introduction:

    Plank multi rip sawmill (i.e. multi rip sawmill for Beam/Cant/Slab) is a new saw machine for plank that without the deturn plane, which is to make wooden pallet, wall board, floor board and such specification board.

Features:

·         Three saw spindle, small saw blade dismeter and thin saw kerf;

·         flat and smooth sawing surface (replace planer);

·         energy-saving and low waste due to the multi-blade design;

·         high feeding speed and greatly improve efficiency.

·         fast loading, easy operation and high timberutilization.

·         Upper pressing rolls automatically increase tensile force to ensure stable feeding.

·         Moreover, the spindle cooling, electric degreasing & cooling functions and external high preasure spray head help save energy and improve cooling effects.

Technical Parameters:


Model Number

1116

Max. Sawing Height

16cm

Min. Sawing Height

1.5cm

Max. Sawing Width

28cm

Min. Sawing Width

No limited

Total Power

27kw+27kw

Materials Feeding Speed

6-12m/min

Materials Feeding Mode

Automatic

Press Roller Adjustment of feeding   materials

Step-less speed regulation

Saw Blade

20pcs(upper 10pcs+down 10pcs)

Machine Frame

Fully closure

Cooling Method

Water cooling

Out Size

1900*1500*1700mm

Weight

1600kg

Tool and Spear Parts

1set

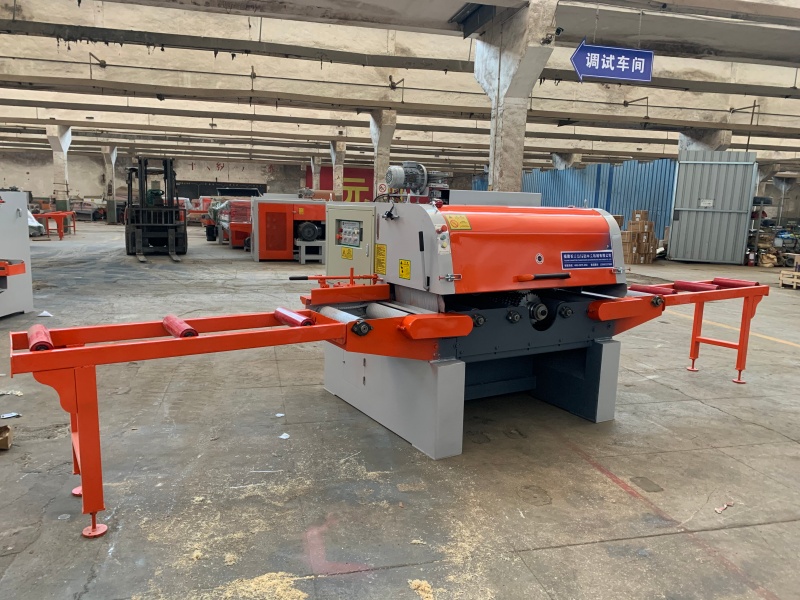

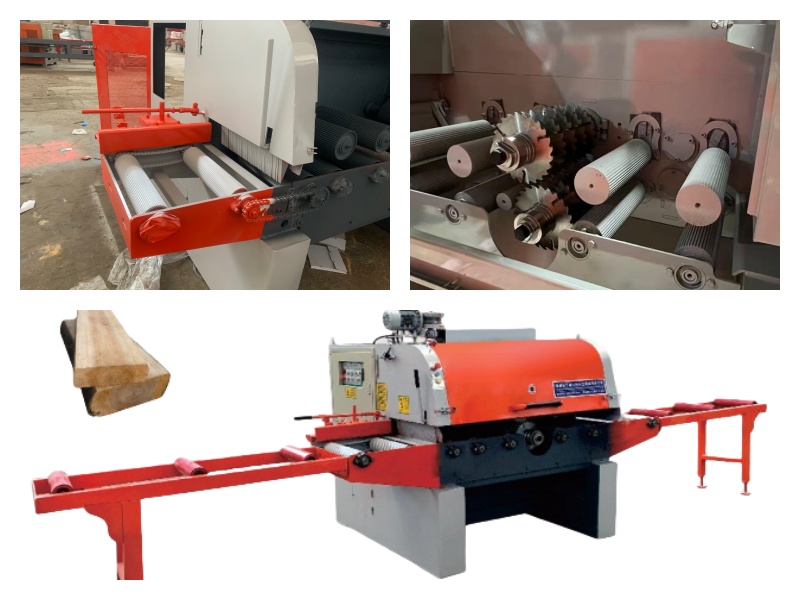

rip saw.jpg

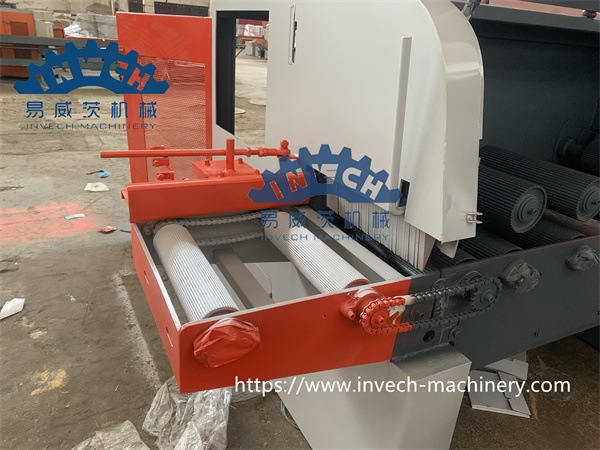

feeding port.jpg
